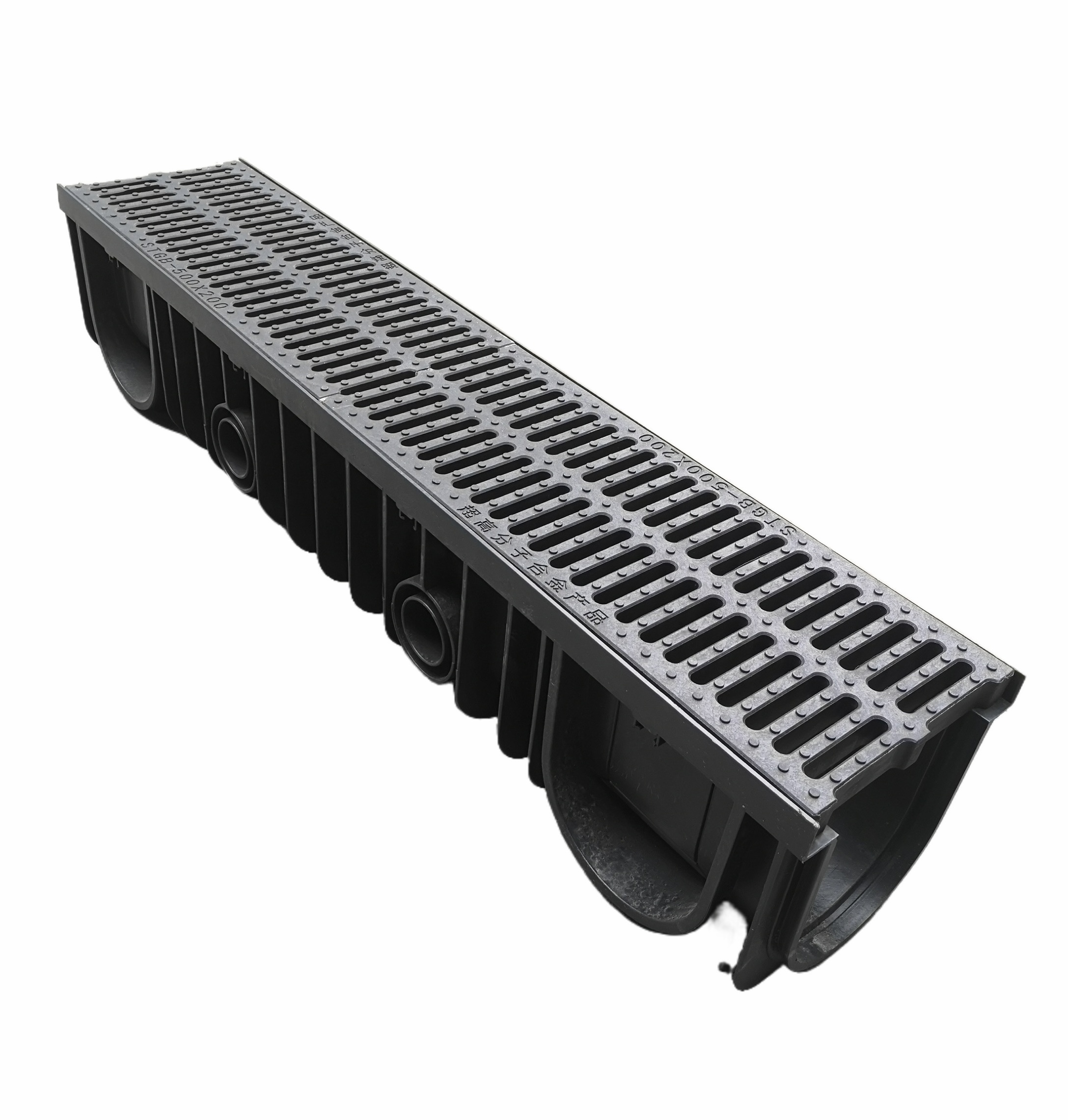

Drainage System | HDPE Drainage Channel

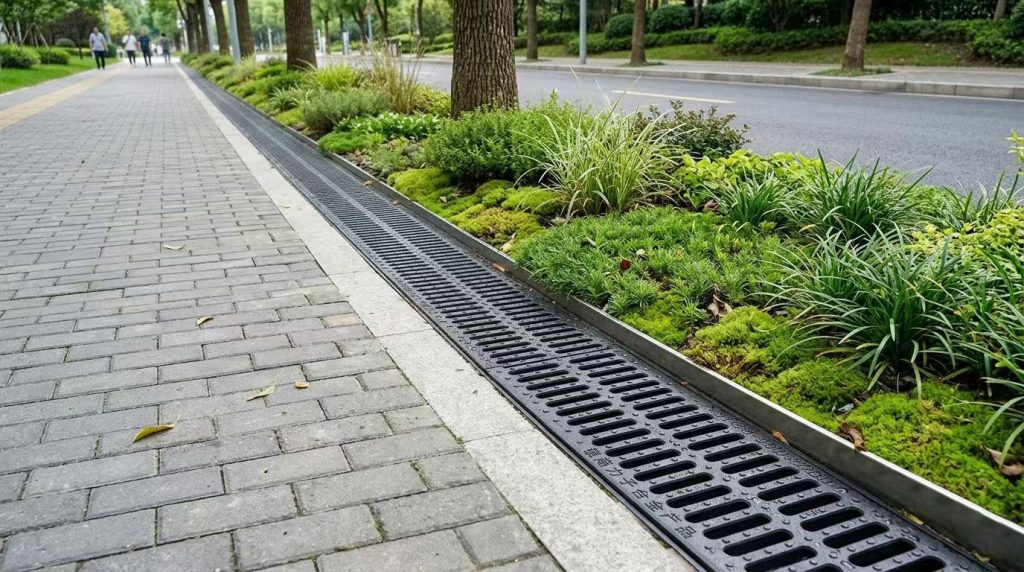

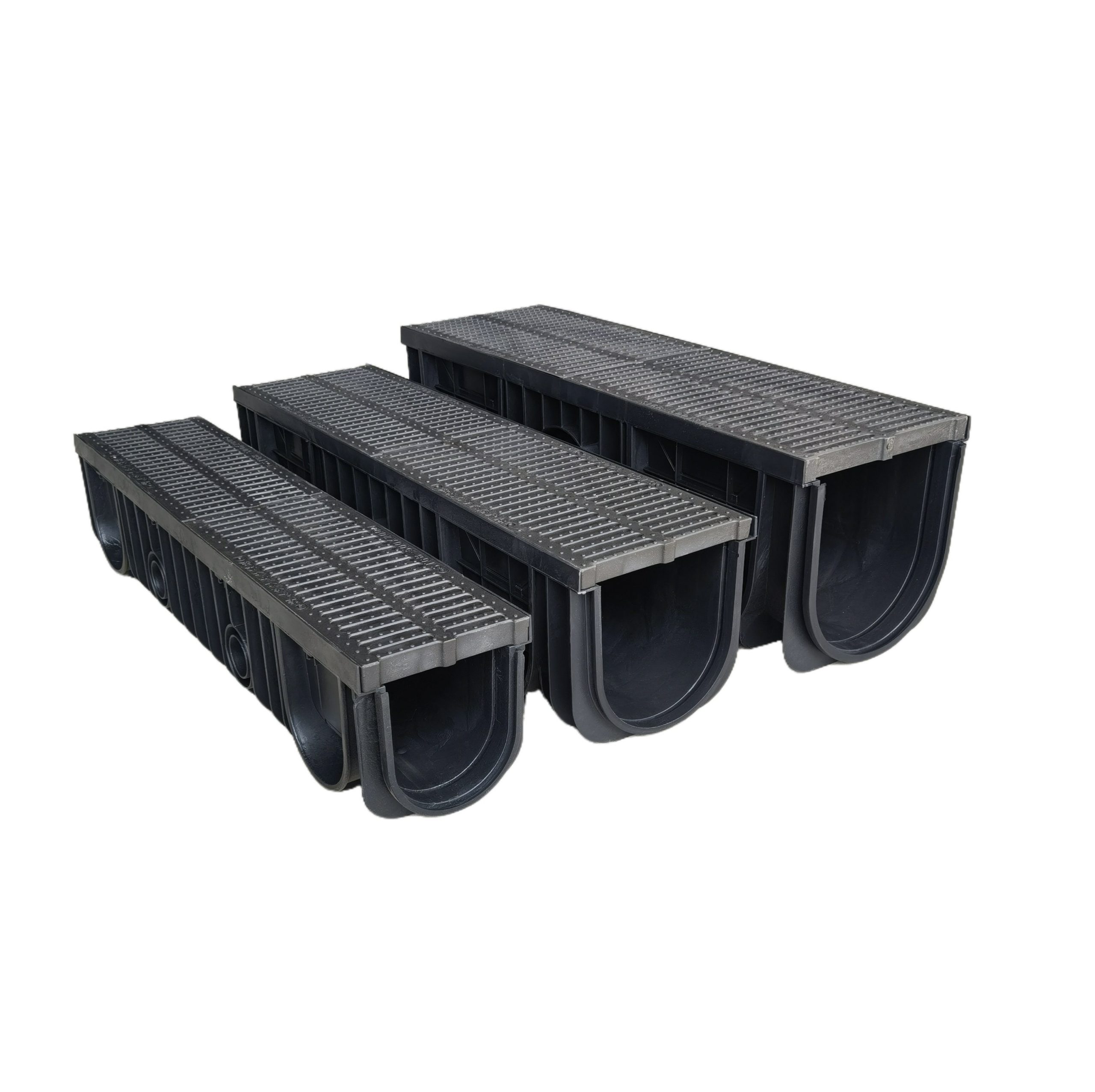

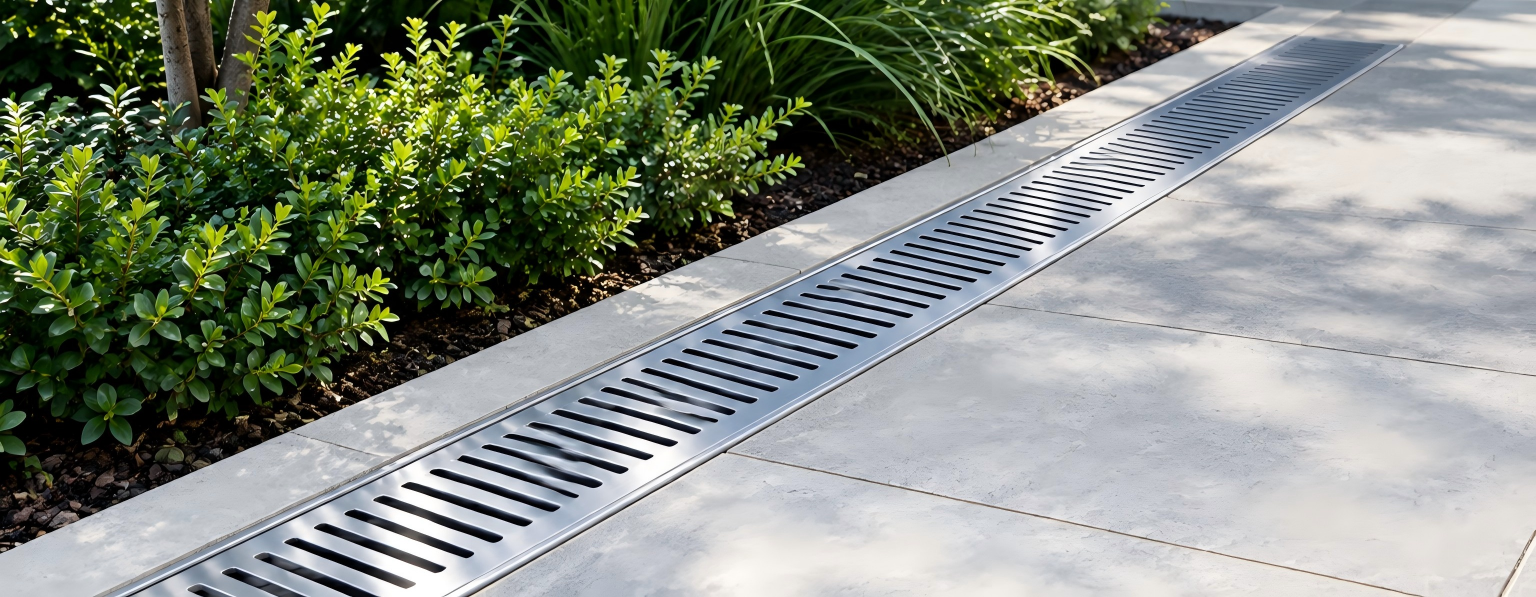

HDPE Linear Drainage Channels are applied in areas roads, plazas, parking lots, residential communities, landscape zones and municipal projects with lightweight, high strength, corrosion resistance, easy installation, good drainage capacity and long service life.

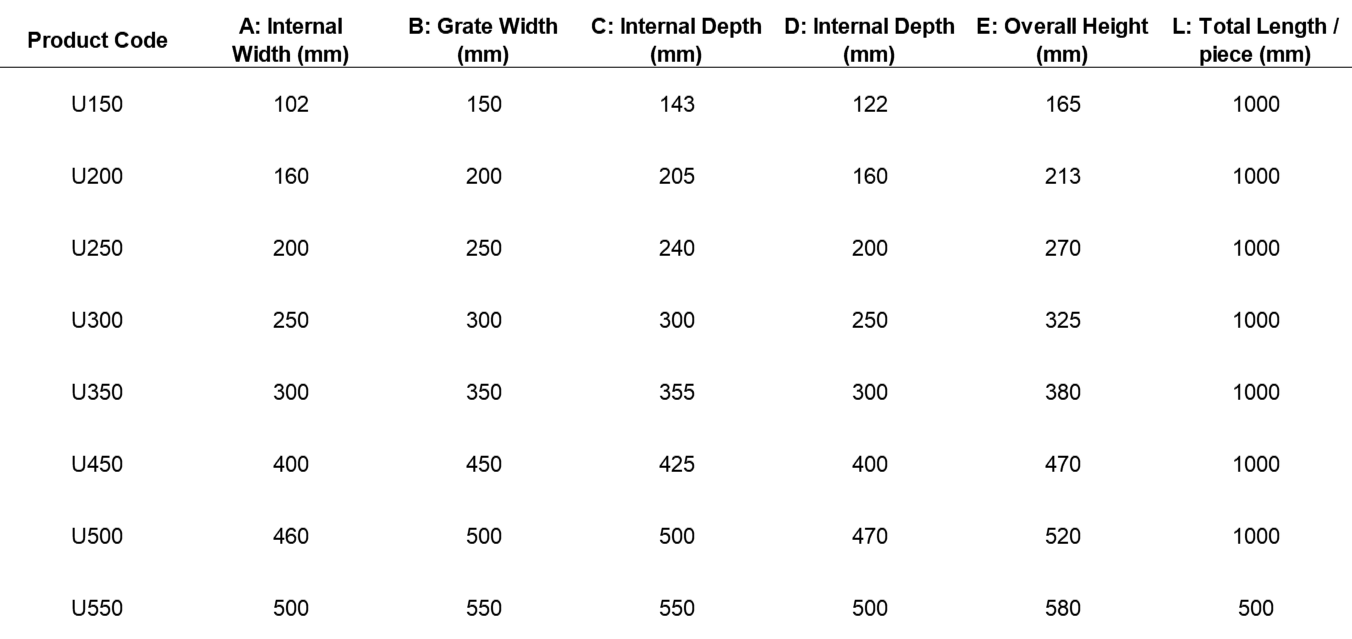

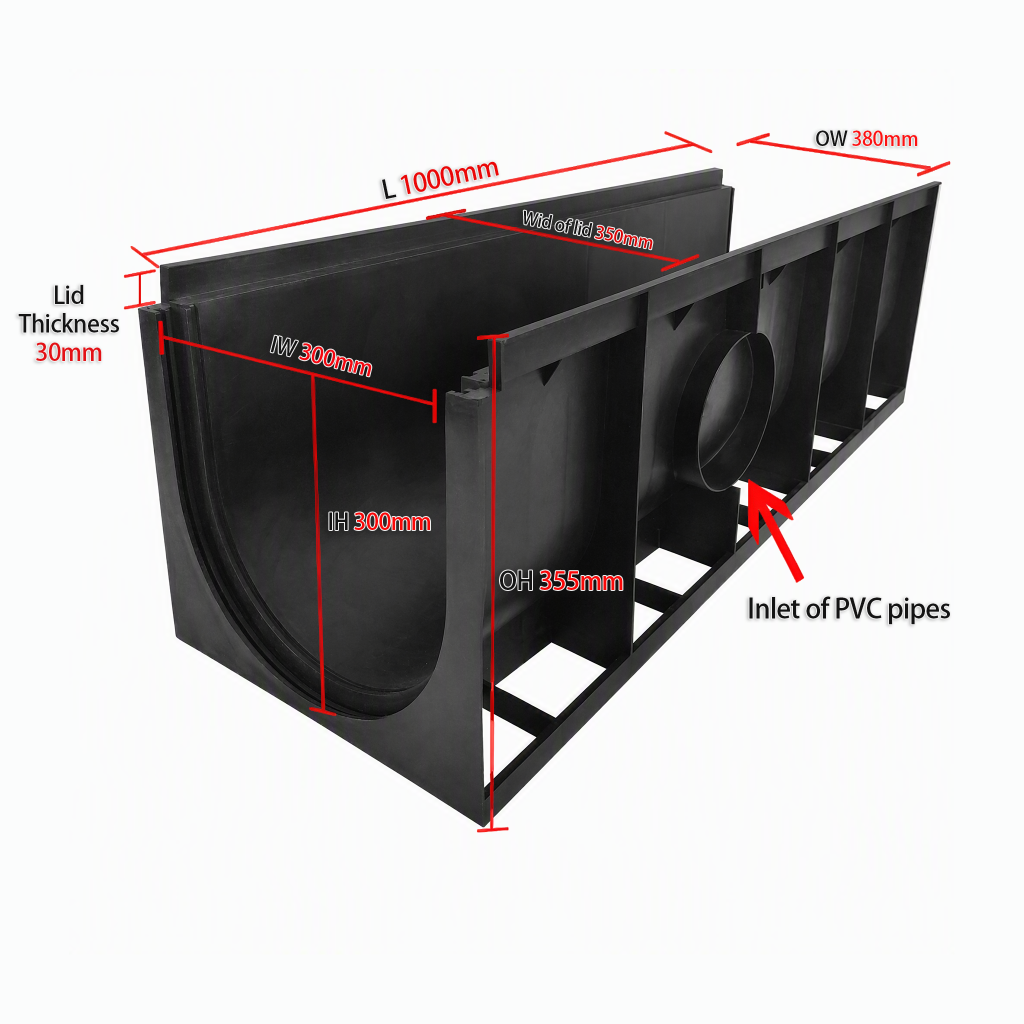

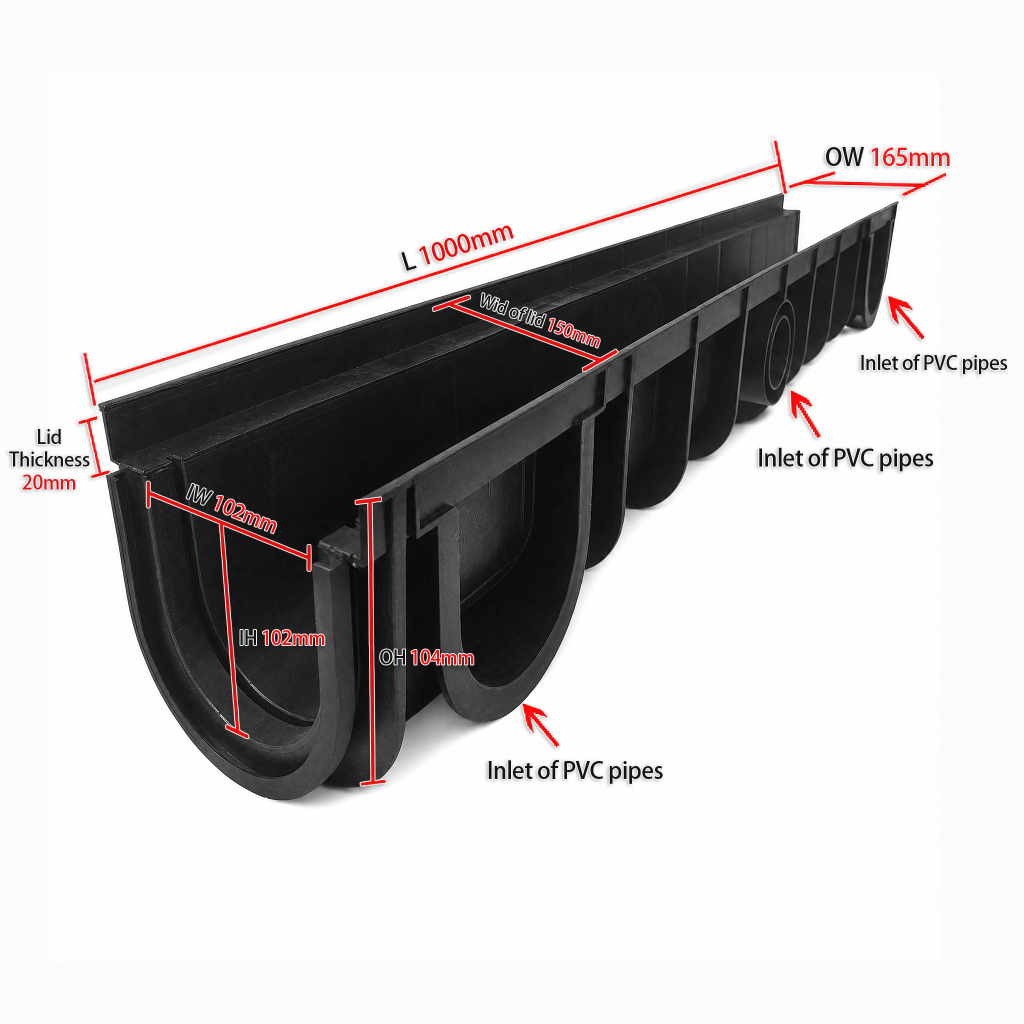

YDU150-102-20

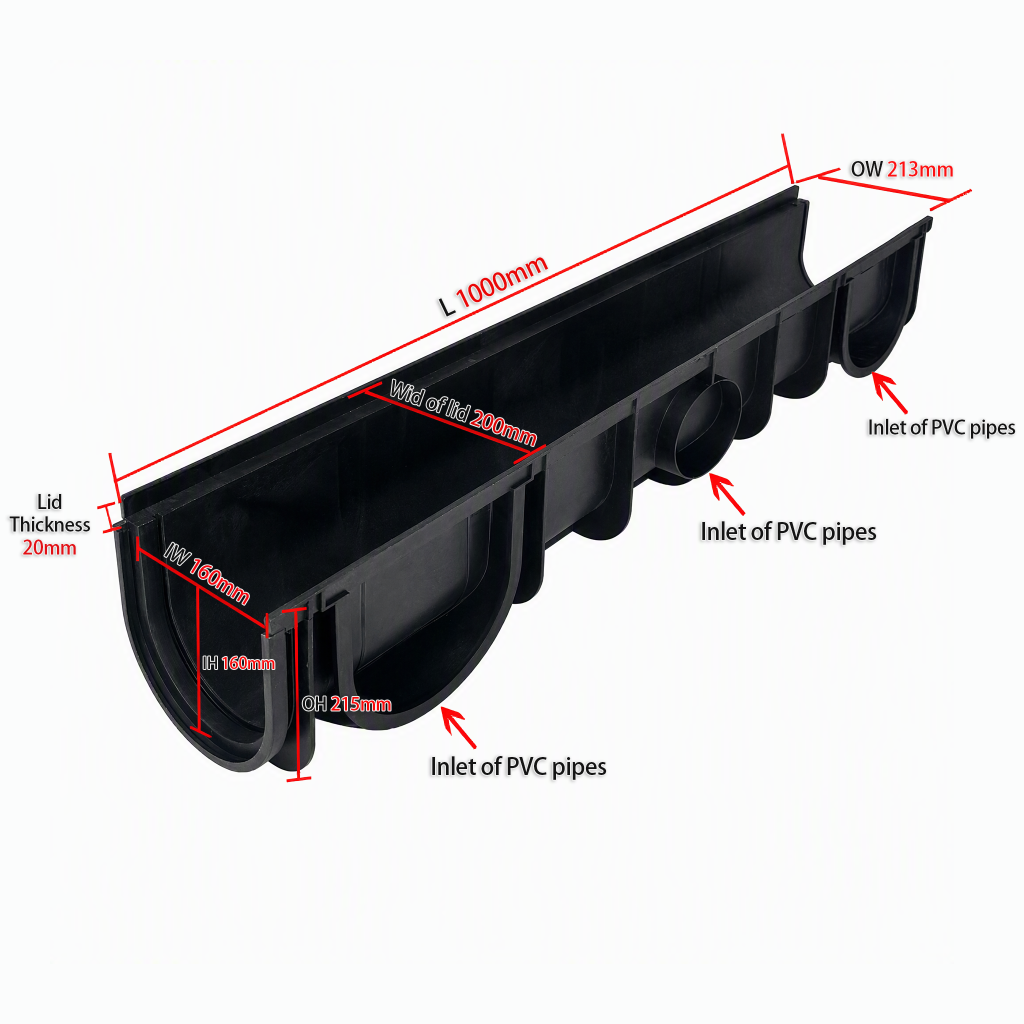

YDU200-160-20
YDU200-160-25
YDU200-160-30
YDU200-160-40
YDU250-200-20
YDU250-200-25
YDU250-200-30

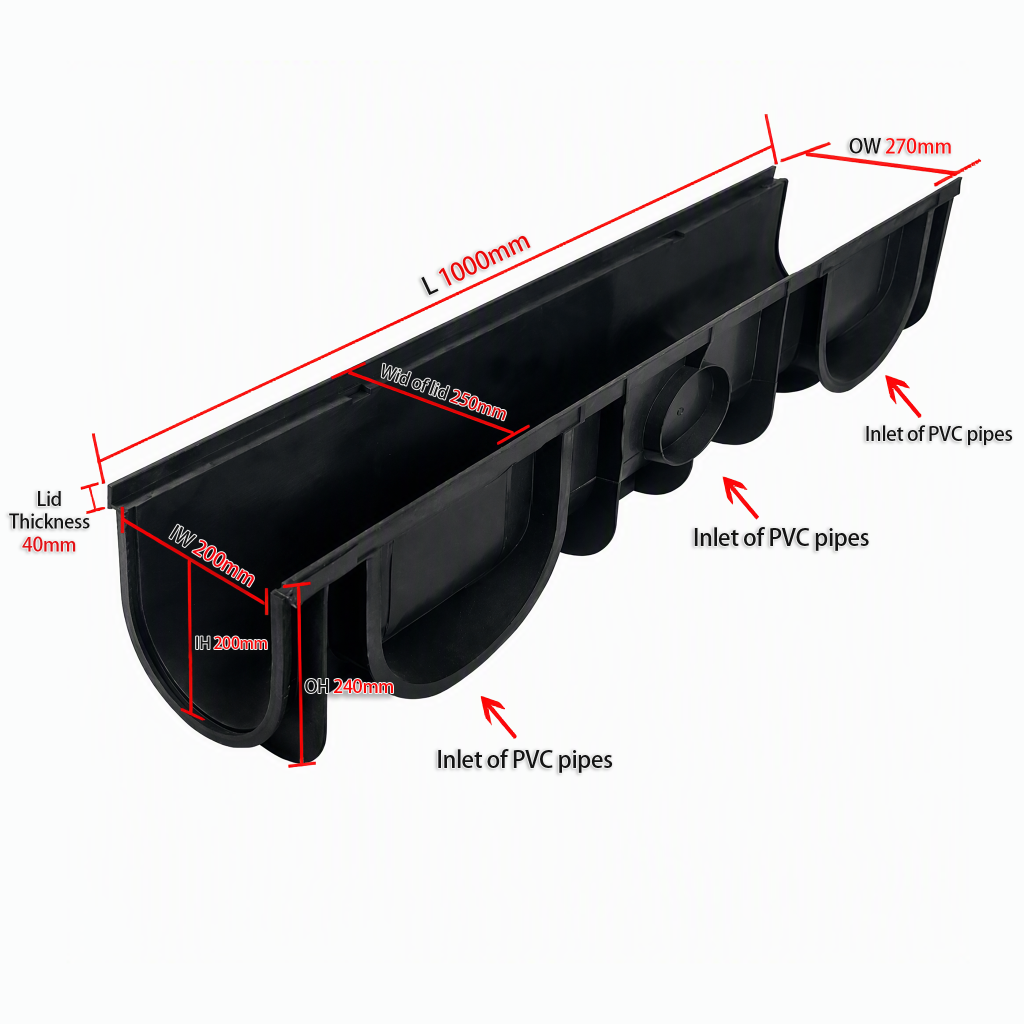

YDU250-200-40
YDU300-250-20
YDU300-250-25

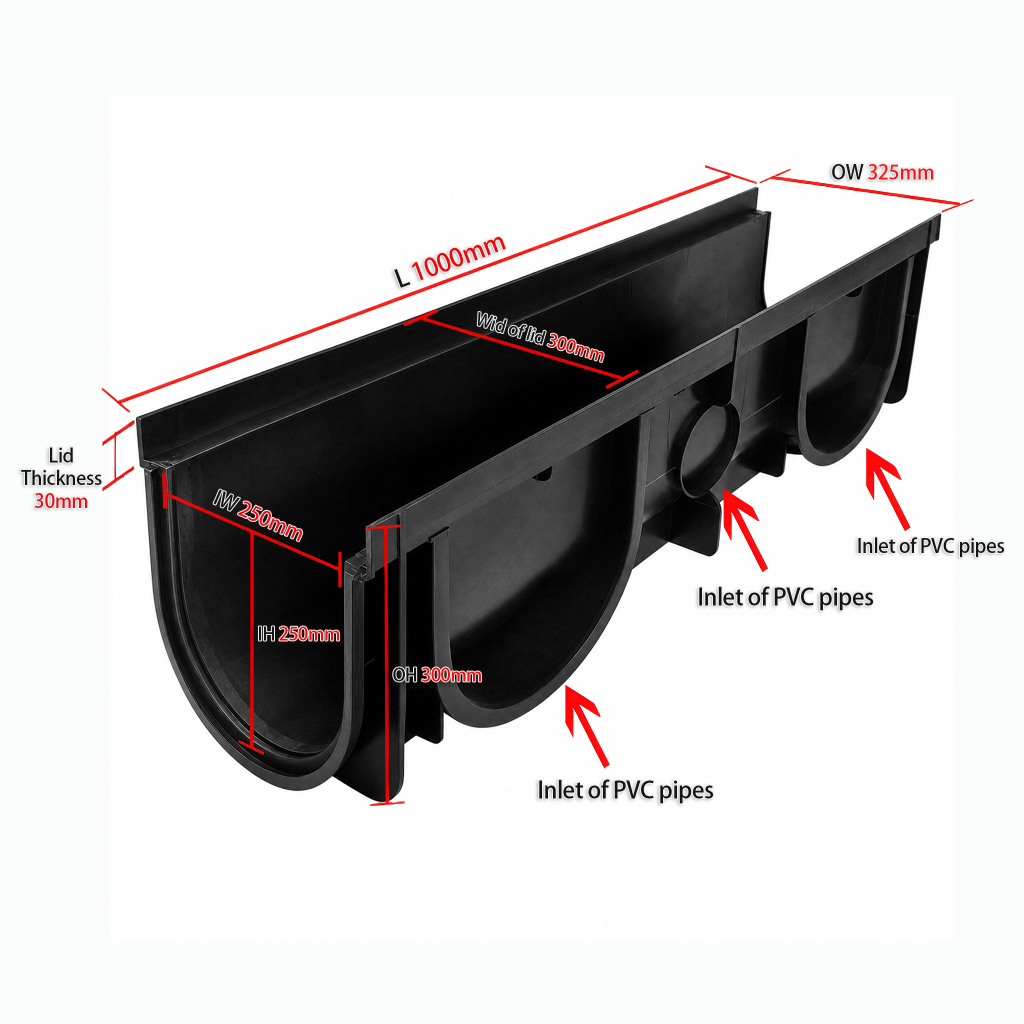

YDU300-250-30
YDU300-250-40
YDU350-300-30

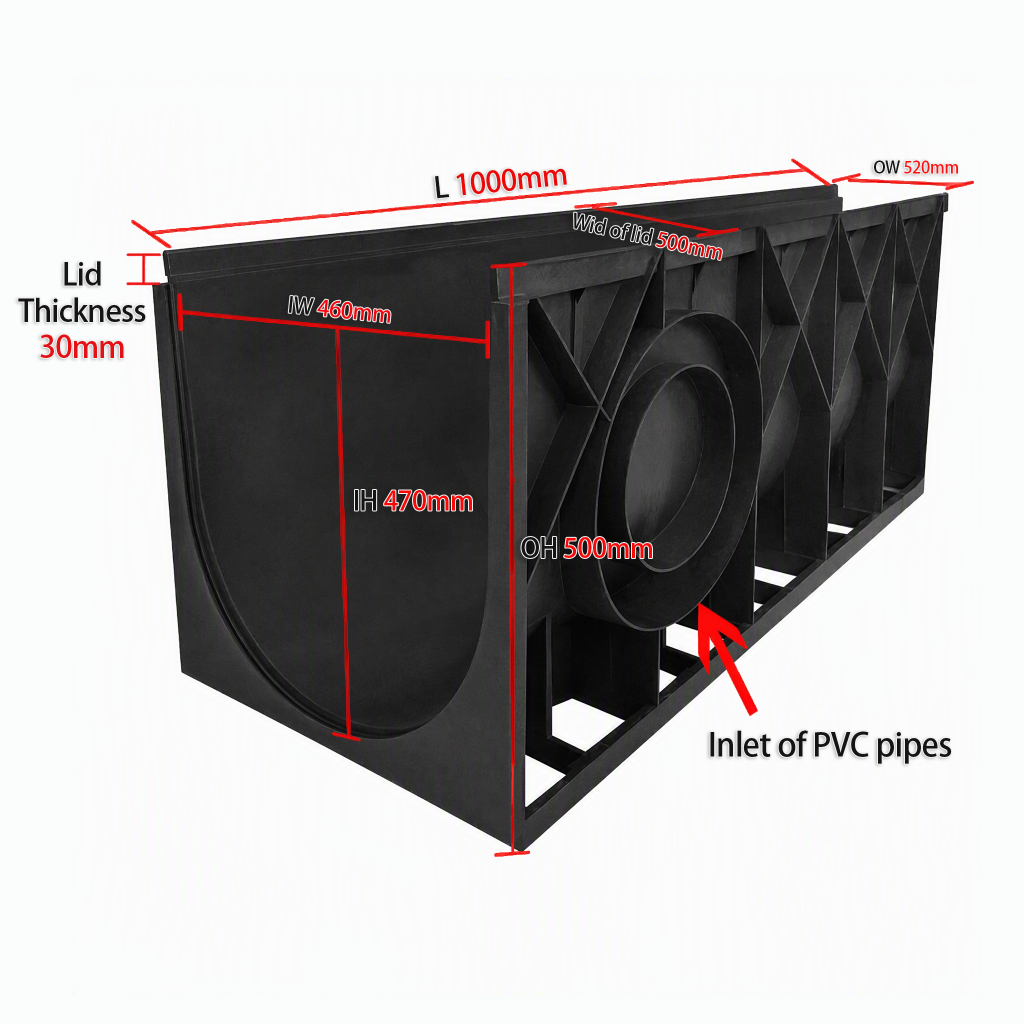

YDU500-470-30
Key Advantages
Easy to Assemble
Manufactured from high-density polyethylene (HDPE) and weighs 80% less than traditional concrete channels. This makes assembly and installation quick and easy, thereby saving time and costs.
Recyclable
Yude rainwater drainage channels are made from 100% recyclable plastic. This material can be reintroduced into the production process, thereby protecting the environment and benefiting future generations.
Hydraulic Performance
The Yude rainwater drainage Channel system features smooth, rounded internal surfaces that not only facilitate higher flow velocities but also provide self-cleaning capabilities, thereby preventing the accumulation of silt and sediment.
Chemical Resistance
Manufactured from high-quality polypropylene (PP), offering resistance to most chemical agents, acids, salts, alkalis, fuels, oils, and greases.
Lightweight
Made from lightweight materials, the product offers the advantages of easy handling, transport, and installation.
High Strength
Featuring an advanced structural design, Yude Rain Eco drainage channels possess exceptional structural rigidity, effectively preventing damage during and after installation.
Locking Mechanism
Locking Mechanism Equipped with a 4-point secure locking mechanism, the anti-theft design provides added peace of mind.
Load Classifications
Our HDPE Linear Drainage Channels are designed and manufactured in accordance with EN 1433:2003, covering key requirements for the classification, design, testing, marking and conformity evaluation of linear drainage channels for pedestrian and vehicular areas.
Engineered for reliable surface-water collection and conveyance, the system combines high-strength HDPE, corrosion resistance, lightweight construction and long-term durability for demanding drainage applications.

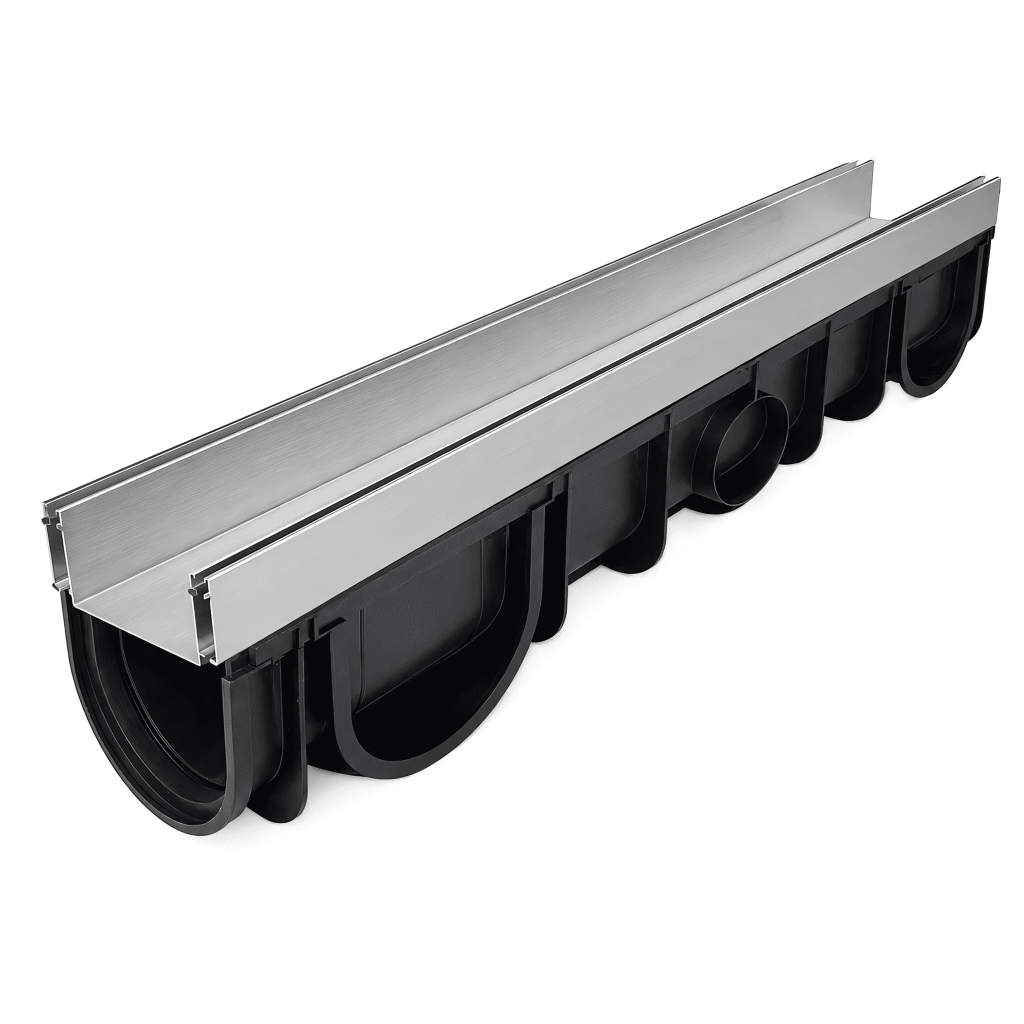

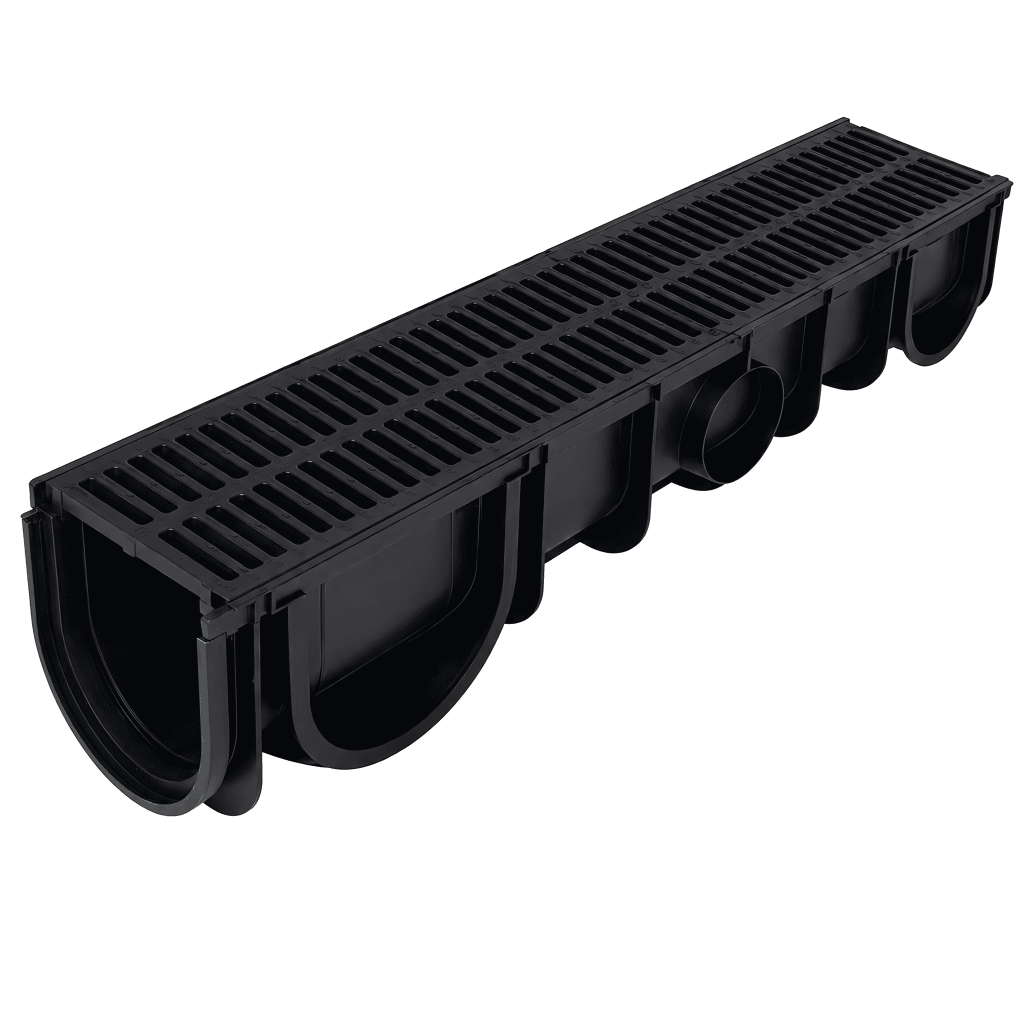

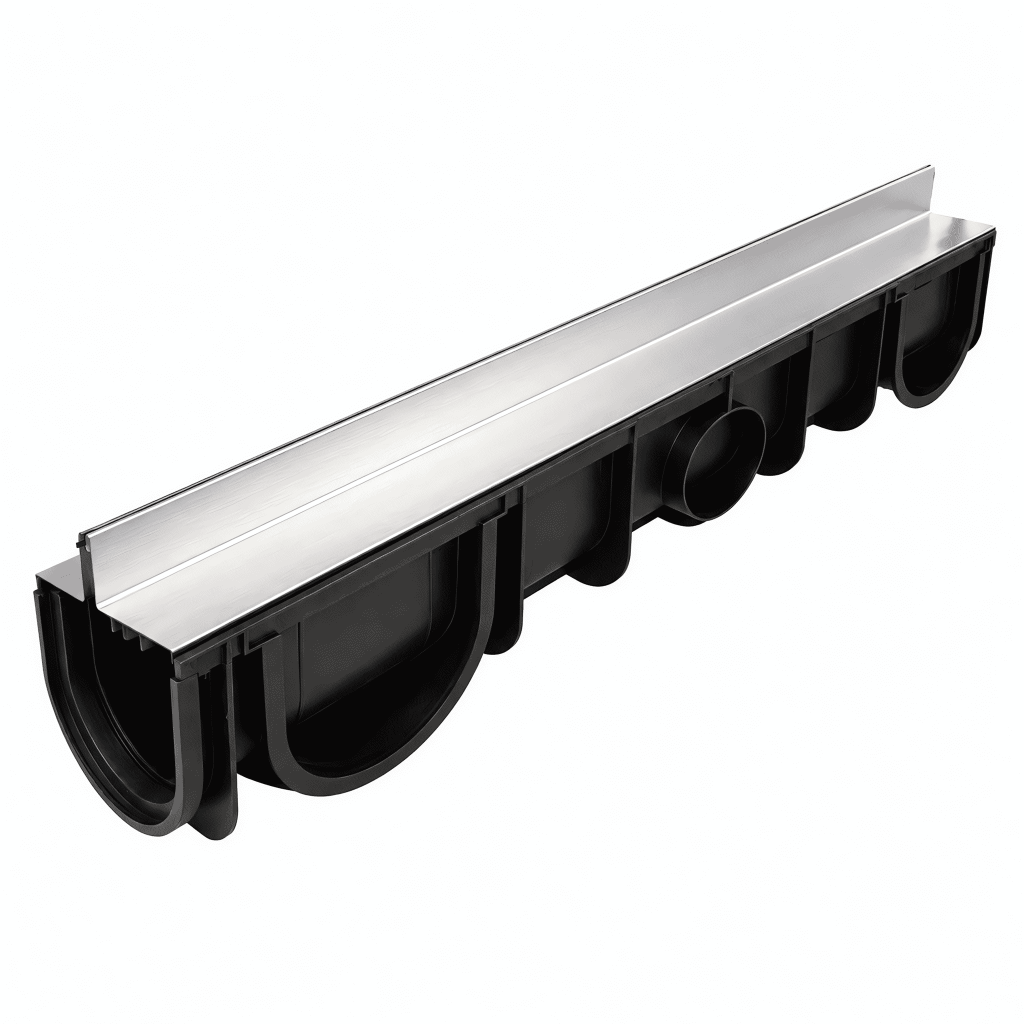

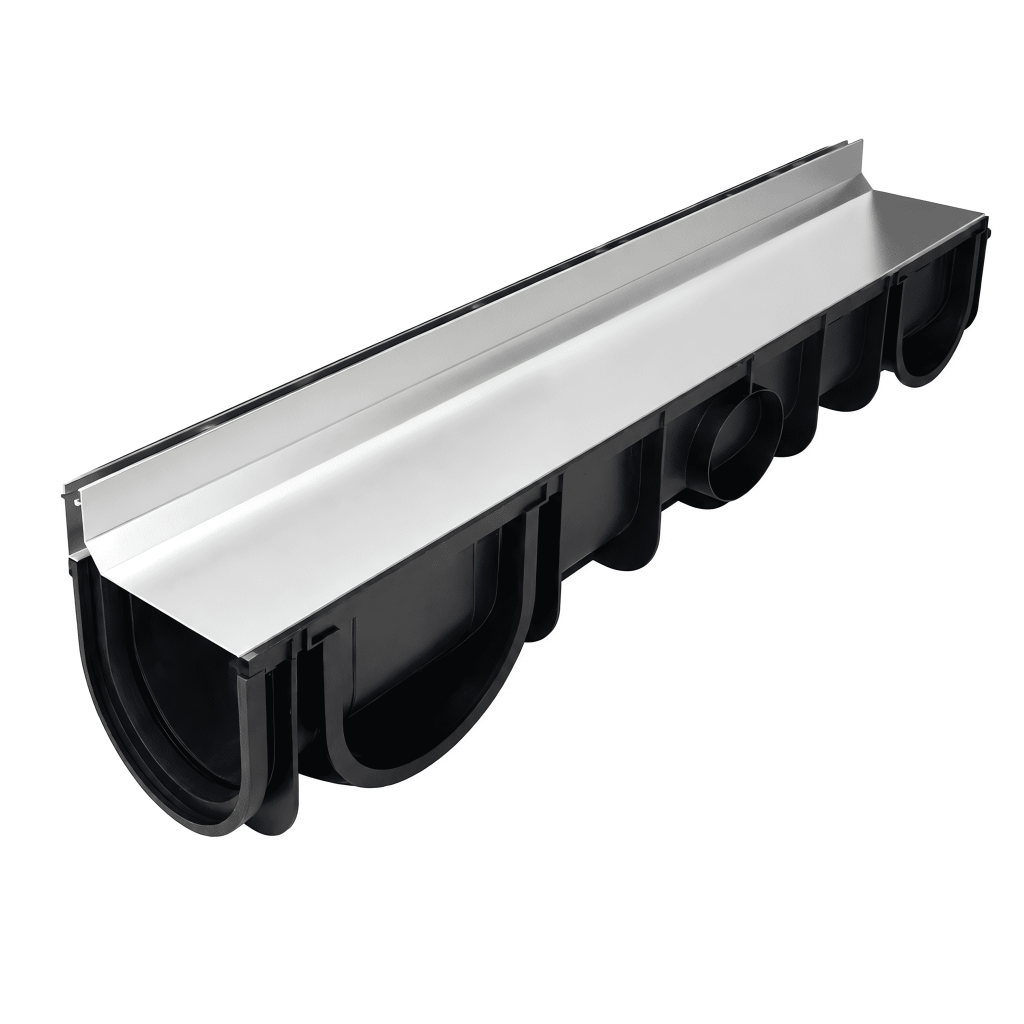

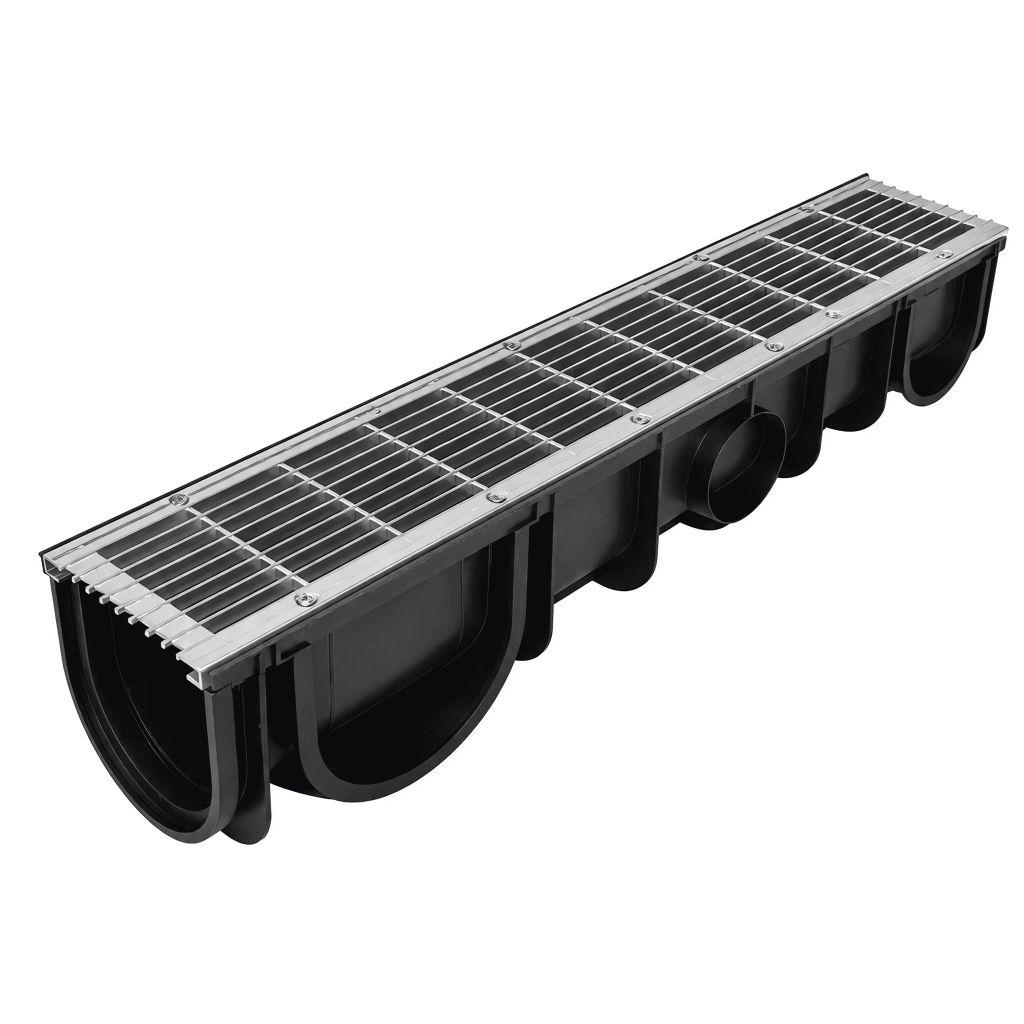

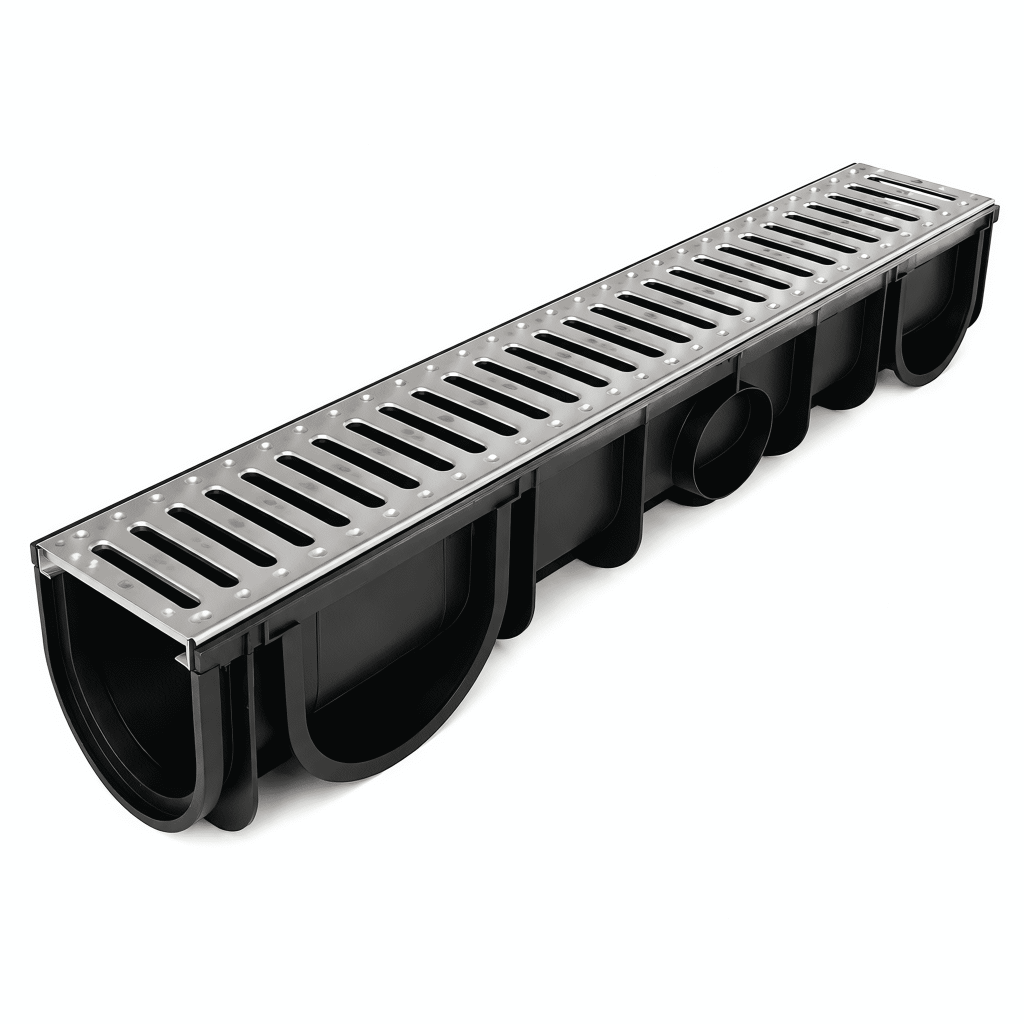

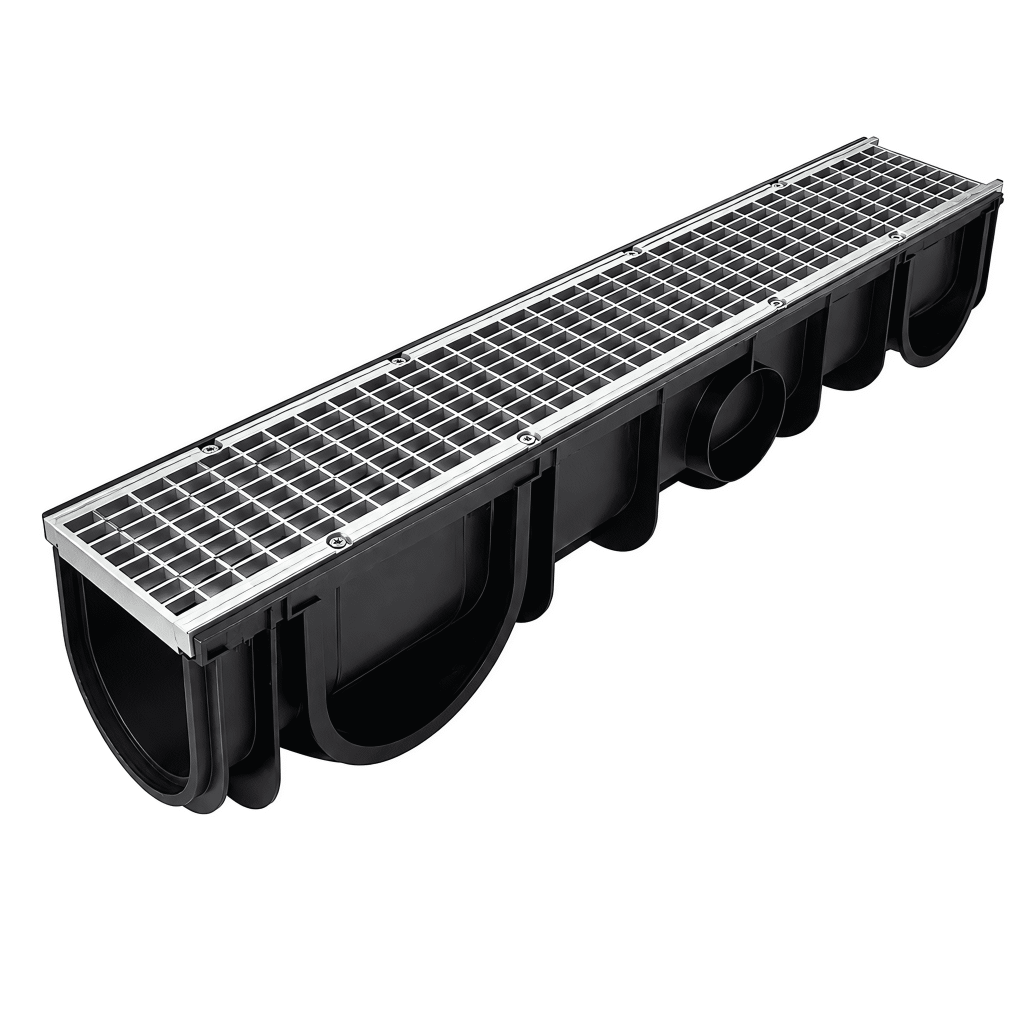

Covers Details

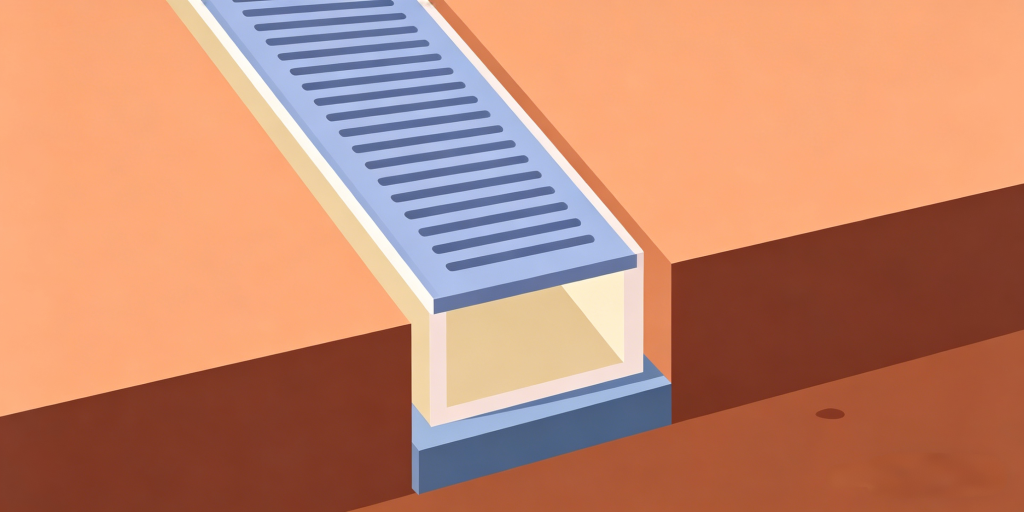

Installation steps

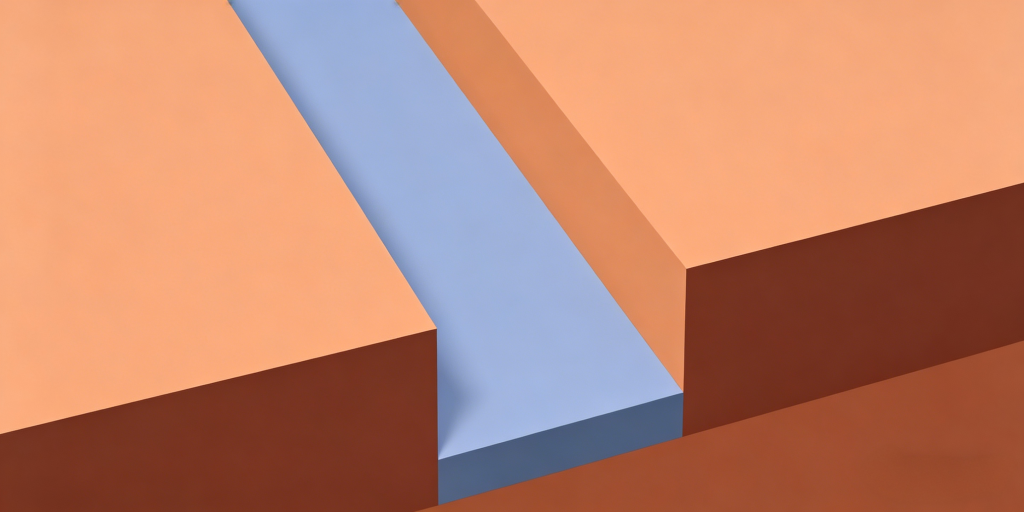

1. Trench Excavation
Excavate the foundation trench strictly in accordance with the construction size and slope requirement.
Level and compact the trench bottom and side walls to keep the base flat, solid and free of sundries, ensuring a stable mounting foundation for the drainage channel.

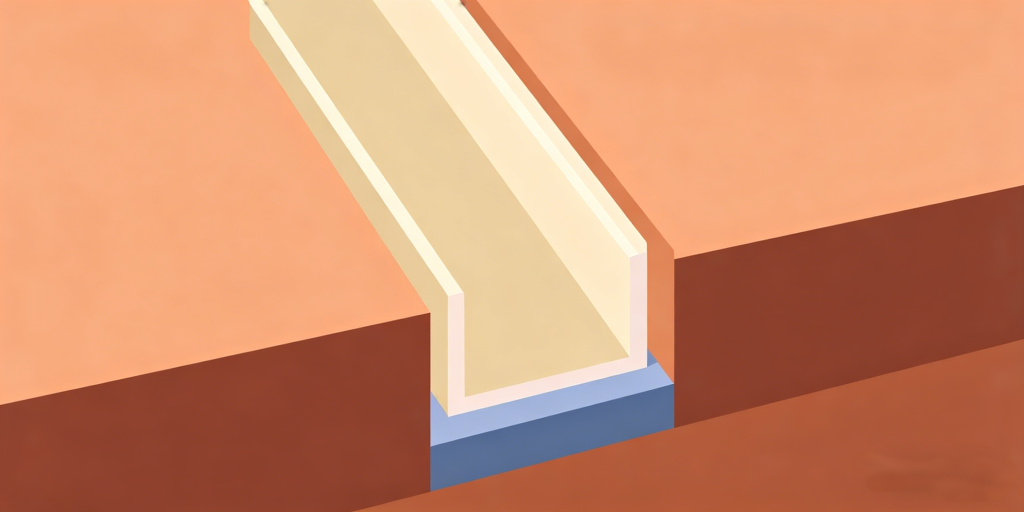

2. Channel Body Laying
Lay a layer of cushion mortar or gravel at the bottom of the trench. Place the drainage channel sections in sequence, connect and align each section tightly.
Adjust the horizontal level and drainage gradient to guarantee smooth water flow and overall structural stability.
3. Cover Installation
Clean the top edge of the channel body. Place the supporting cover plates accurately into the reserved position.
Ensure the covers are closely fitted, locked firmly and evenly arranged to prevent displacement or sinking under external pressure

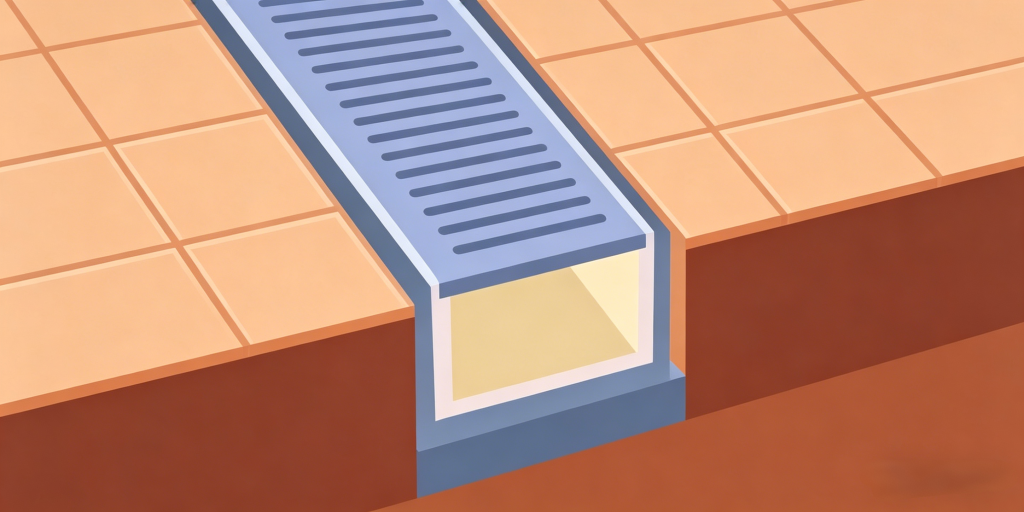

4. Concrete Pouring & Pavement Laying
Pour concrete on both sides of the channel for fixation and reinforcement. After concrete solidification, lay floor stones, bricks or pavement materials around the channel.
Keep the surface flat with the channel opening to realize integrated road drainage.
FAQ
Stormwater attenuation tanks is a specially designed system used to capture, store, and manage rainwater runoff. It helps to prevent flooding by controlling how water is drained away from urban and industrial areas.
Stormwater attenuation tanks help manage rainwater effectively in cities, parking lots, roads, and other areas with a lot of concrete. They prevent flooding, reduce water pollution, and help conserve water for future use.
Stormwater modules significantly reduce the risk of flooding in urban areas by capturing and retaining excess rainwater, preventing surface runoff from overwhelming drainage systems. YD StormBreaker32® modules provide efficient flood prevention through detention, retention, and infiltration, especially in high-density urban environments where traditional drainage systems may be inadequate.
Yes, the YD StormBreaker32® module is designed for detention, retention, and infiltration of stormwater, allowing for efficient water management and reducing the risk of flooding in developed areas.
The YD StormBreaker32® module stands out due to its high load capacity, compact design, long lifespan, eco-friendly materials, and flexible installation, providing a reliable and efficient solution for managing stormwater in urban and industrial applications.
Yes, stormwater modules can be designed or adapted to meet specific requirements, such as adjusting the storage capacity, load-bearing capabilities, or installation configurations based on project needs.
Contact us to inquire about Yude Rain Eco’s channels.
